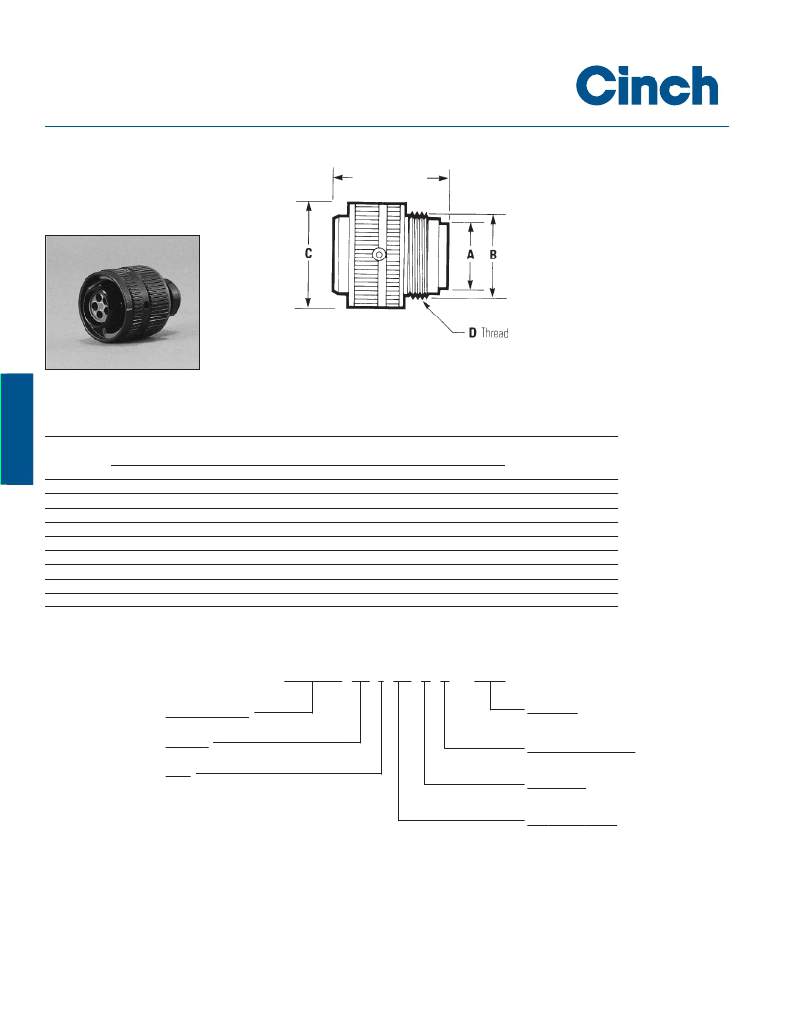

C0909A MMB Series (C48 Family)
Vibration-Proof Plug Connector
Bayonet Coupling
C0909AXXXXXXX
BACC63BN 1
1.345
(34.164)
Max.
3
Dimensions
Shell
A
Dia.
B
Dia.
C
Max.
D
Thread
Size
8
10
12
14
16
18
20
22
24
in
.328
.420
.580
.664
.769
.902
1.033
1.152
1.282
mm
8.331
10.668
14.732
16.866
19.533
22.911
26.238
29.261
32.253
in
.437
.562
.750
.812
.938
1.062
1.182
1.312
1.432
mm
11.100
14.275
19.050
20.625
23.825
26.975
30.023
33.325
36.373
in
.766
.906
1.078
1.141
1.266
1.375
1.510
1.625
1.760
mm
19.456
23.012
27.381
28.981
32.156
34.925
38.354
41.275
44.704
UNEF-2A
.437-28
.562-24
.750-20
.812-20
.937-20
1.062-18
1.187-18
1.312.18
1.437-18
Ordering Information 2
Series Designation
C0909A
C0909A 10 - 05 P 8 - XXX
Order Code (Deviations)
202 - With Gold-Plated Contacts*
106 - Less Contacts
Shell Size
8, 10, 12, 14, 16, 18, 20, 22, 24
Class
(Dash) - Anodized Aluminum
E - Cadmium/Nickel-Plated Aluminum
N - Nickel-Plated Aluminum
Alternate Shell Positions
N, 6, 7, 8, 9, 10
Per table on page 3-4.
Contact Style
P - Pin Insert
S - Socket Insert
Inser t Arrangements
(See page 3-4)
Notes:
1
2
For Boeing Specification, see page 3-14.
For deviations, classes, etc. not listed, consult factory.
* Former order code - 102 designated rhodium plated contacts
Call Toll Free: 1 (800) 323-9612
3-19
